The Ultra-Low NPSHr Sundyne API 610 OH3, API 682, ISO 13709, ASME Certified Direct Drive Pump
Sundyne engineers have decades of impeller and inducer design experience. They leveraged that experience and analysis to develop a heavy duty vertical inline centrifugal pump with NPSHr performance that is unparalleled in oil and gas production, midstream and hydrocarbon processing industries. The LMV-803Lr is capable of running ultra-low NPSHr <10 ft (3 m) up and down the curve without losing performance.
The LMV-803Lr is Sundyne’s most robust direct drive pump to date. A rugged 6×4 casing allows for higher pressures and higher flows. The pump features new inducer technology and a backswept impeller that eliminates low-inlet pressure cavitation.

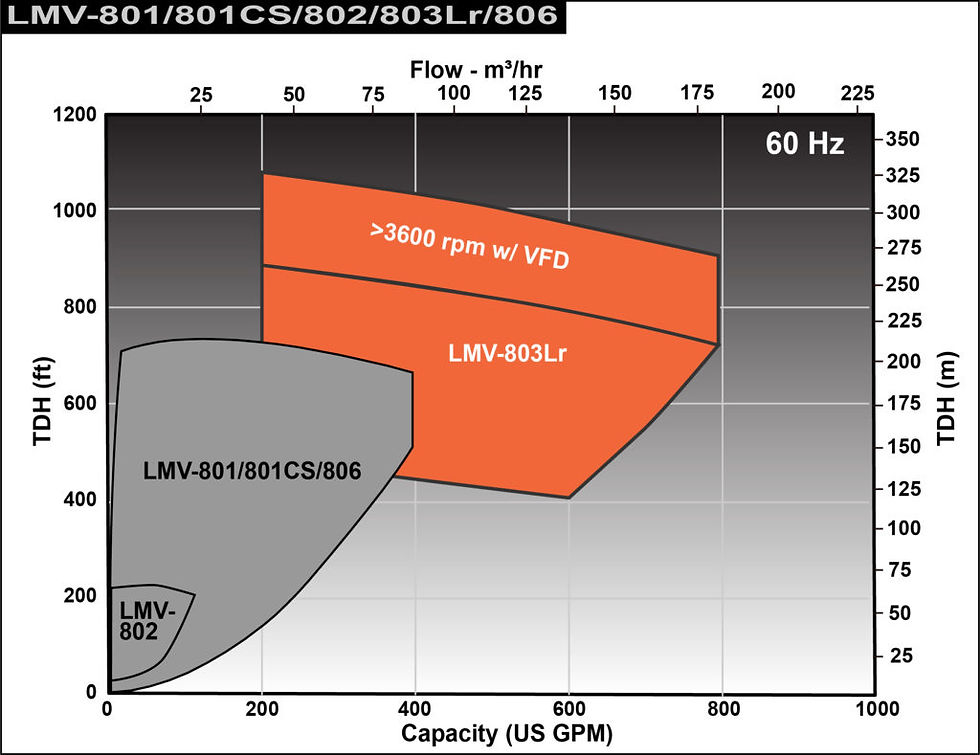

Flows to 800 gpm (182 m³/hr)
Heads to 1,030 ft (314 m)
Suction Pressure 400 psi (28 bar)
Temperature Range -200 to 400°F (-129 to 204°C)
LOWER INSTALLED COST
Because the LMV-803Lr has such a low NPSHr rating, it may be installed at grade level eliminating the need of a sump pit. This also greatly reduces the required skirt height of an elevated tower significantly reducing typical installed costs.
In addition, the vertical configuration of the direct drive line of Sundyne pumps are specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.

APPLICATIONS
· Bubble point applications (Anes/Enes)
· Feed pumps
· Fractionation pumps
· Booster pumps
· Bottoms pumps
· Liquefaction
· Wash water pumps
· Reflux pumps
· Condensate pumps
