The Sundyne API 610, OH3 with Cartridge Seal API-682 Direct Drive Pump
The Sundyne LMV 801CS (Cartridge Seal) is a self-contained unit consisting of a shaft sleeve, seal and gland plate that fits onto the pump shaft as a single assembly. The cartridge seal design eliminates many common causes of seal failure and it helps operators overcome the fitting and installation problems associated with conventional seals.
The compact and rugged API 682 cartridge seal is designed specifically for the Sundyne LMV 801, providing operators and maintenance engineers with an economical alternative to standard seal configurations, in a convenient package that eliminates errors in installation.

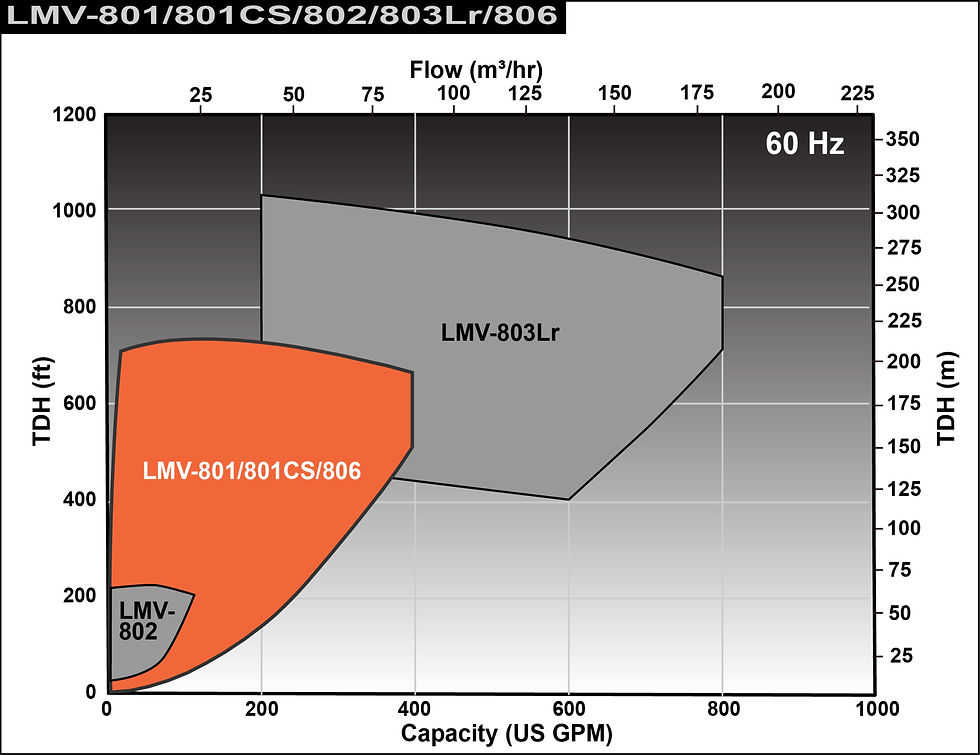

Flows to 380 gpm (86 m³/hr)
Heads to 720 ft (220 m)
Suction Pressure 875 psi (60 bar)
Temperature Range -40 to 450 °F (-40 to 232 °C)
The vertical configuration of the direct drive line of Sundyne pumps are specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.
APPLICATIONS
· Feed pumps
· Booster pumps
· Bottoms pumps
· Wash water pumps
· Reflux pumps
· Condensate pumps
